Gooseneck Horse Float

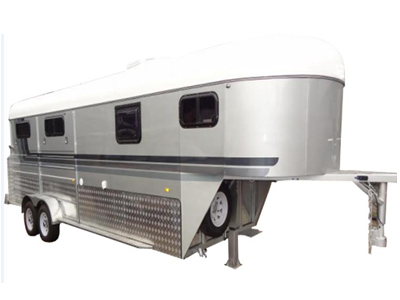

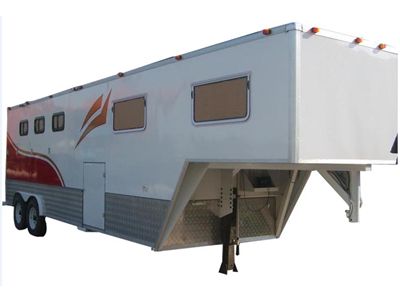

Gooseneck Horse Float with Living Area
Tel:+86-13953213158
E-mail:Paule@haylite.com
Gooseneck Horse Float with Living Area
|
Overall information |
|
| Overall size | 8660x2280x2590mm |
| Internal size | 7975x1930x2155mm |
| Chassis size | 8050 (+610) x 2280 |
| Chassis surface finish | Hot Dip Galvanized surface finish |
| Net weight | 2400KG |
| Max. Loading | 4000KG |
| Surface finish | Powder coated |
| Color | Can be customized color |
| Windows and doors | |
| Side window | 900x300mm 6 pieces |
| Put Down Window | 790x510mm 2 peices |
| Side door | Caravan door |
| Rear upper door | Pump strut |
| Rear Lower door | Used as ramp, 15mm plywood + 10mm rubber mat, pump strut |
| Inside | |
| Floor | 18mm plywood + 8mm rubber mat |
| Horse protection frame | 68mm thick pillow |
| Inside horse rings | Stainless steel material |
| Hayrack | Mesh hayrack on top |
| Horse Saddle box | Swing horse saddle box, aluminium material |
| Spare parts | |
| Mudguard | 1650x250mm |
| Taillight bracket | 1.5mm aluminium checkered plate |
| Rim | 14 inch alloy |
| Tyre | 205R14 |
| Axle | 60x60mm sqaure axle |
| Brake | Electrical brake |
| Spring | 9 leaves spring |
| Out side horse rings | Stainless steel |
Customized color and design are acceptable
Haylite factory was founded in 1993. We manufacture different kinds of horse float and trailers.
Available model of horse floats:
2 horse straight load Standard
2 horse straight load extended
2 horse angle load standard
2 horse angle load extended
3 horse angle load standard
3 horse angle load extended
4 horse angle load
7 horse angle load
Gooseneck trailer with living area
Customized design are also acceptable
